How To Use the Segment Swapper in VCM Editor

A Guide to Using the Segment Swapper in HP Tuners’ VCM Editor

Upgrading a vehicle’s transmission system can offer significant performance enhancements but can be complex and challenging without the right tools. HP Tuners’ VCM Editor simplifies this process with its Segment Swapper tool, which is instrumental when switching between different types of transmissions, such as from a GM 4L60E to a GM 4L80E. This blog post dives into the process of using the Segment Swapper tool to update a transmission file, which speeds up the tuning process immensely.

Understanding the Segment Swapper

The Segment Swapper is a specialized feature in the VCM Editor that allows for the precise swapping of transmission data between different systems. This tool is crucial for ensuring that all necessary calibration data is correctly integrated when upgrading to a different transmission type.

Step-by-Step Guide to Using the Segment Swapper

1. Read the Vehicle: Start by connecting to the vehicle and reading the existing data. This step is essential to access the current transmission settings which in our example is from a 2000 Chevrolet Tahoe with a 5.3 engine and a 4L60E transmission.
2. Identify the Appropriate Operating System (OS): The next step involves identifying and selecting the correct OS that supports the new transmission system (e.g., 4L80E). Typically, this would be from a similar vehicle that originally came equipped with the desired transmission system.
3. Preparing for the Segment Swap:
   – Open Transmission Files: With the current and new OS files ready, open your vehicle’s current transmission file for editing in the VCM Editor.
   – Compare Files: Use the compare feature to see the differences between the current 4L60E and the new 4L80E files. This comparison helps to pinpoint the specific data segments that will be swapped.
4. Execute the Swap:

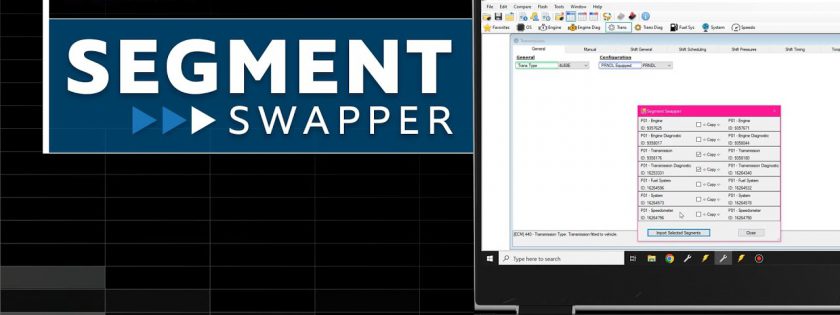

   – Access Segment Swapper: Navigate to the ‘Segment Swapper’ tool within the VCM Editor.
   – Select Data for Swapping: Choose the diagnostic and transmission data segments from the new OS that you want to swap into your current file.
   – Perform the Swap: Execute the swap by importing the selected segments. Ensure you review all selections before confirming the swap to avoid errors.
5. Save the New Setup: Post swap, save the new calibration file under a distinct name to avoid overwriting the original file.
6. Validate Changes: Re-open the newly saved file to confirm that it now reflects the new transmission type and all related settings are correctly adjusted.
7. Write to PCM: The final step is to write the entire new calibration back to the vehicle’s Control Module. This step is crucial to implement the new transmission data fully.

Conclusion

The Segment Swapper tool in HP Tuners’ VCM Editor is a powerful feature that simplifies the process of upgrading vehicle transmissions. By following the detailed steps outlined above, tuners can ensure that their transmission swaps are performed smoothly and without errors. Utilizing this tool effectively can lead to significant improvements in vehicle performance and customer satisfaction.
