DTC P0113 - Intake Air Temperature Sensor Circuit High
Conditions for setting dtc P0113
| ￭ | Engine Running |
| ￭ | Intake Air Temperature Sensor ≥ 4.9 volts |
| ￭ | The above must be present for a period of 128 instances/cycles or greater to trigger DTC P0113 |
NOTE: Both the Terminated Gen III Drive-By-Cable & Gen IV Drive-By-Wire harnesses will have a 5 wire MAF that integrates with the IAT. Customers will have to purchase an adapter harness from EFI to split the 3 wire MAF sensor.
|
Step |
Action |
Values (s) |
YES |
NO |
|
1 |
- Key ON - Within VCM Live, open the IAT sensor DTC parameter, does the IAT sensor parameter display a voltage of 4.9 volts or greater? |
≥ 4.9 volts |
Go to Step 2 |
Intermittent Issue (Refer to Intermittent Diagnostics) |
|
2 |
- Key OFF - Disconnect the MAF/IAT sensor connector jump cavities "D" & "E" - Key ON - Does VCM Live IAT parameter display a voltage of 0.1 volts or less? |
|
|
Go to Step 4 |
|
3 |
- Key OFF - Jump the IAT signal cavity "E" to the engine ground - Key ON - Does VCM Live IAT parameter display a voltage of 0.1 volts or less? |
|
Go to step 6 |
Go to Step 5 |
|
4 |
- Replace the IAT sensor - Is the replacement complete? |
|
|
|
|
5 |
- Key OFF - Disconnect the ECU wire harness connector "D" - Check for continuity between the IAT sensor connector signal cavity "E" & ECU Connector "D" pin 9 - Is there continuity between them? |
|
Go to Step 9 |
Repair the circuit as necessary, locate any wires that need to be repaired or replaced |
|
6 |
- Check for continuity between the IAT sensor ground connector cavity "D" & ECU ground C23-D - Do you have continuity between them? |
|
Go to Step 9 |
Repair the circuit as necessary, locate any wires that need to be reapired or replaced |
|
7 |
- Replace the ECU - Is the replacement complete? |
|
Go to Step 10 |
N/A |
|
8 |
- Re-check wire harness and IAT sensor connector for any and all damages, corrosion, or contamination. - Any issues found? |
|
Repair the circuit as necessary, locate any wires that need to be reapired or replaced |
Go to Step 4 |
|
9 |
- Re-check wire harness and IAT sensor connector for damages - Any issues found? |
|
Repair the circuit as necessary, locate any wires that need to be reapired or replaced |
Go to Step 7 |
|
10 |
- Clear any DTC from the ECU - Turn the ignition off and wait 30 seconds - Start the engine and operate the engine to full operating temperature - Observe the Check Engine Light on the Menu bar in VCM Live - After operating the engine within the test parameters, check for any store codes - Does the engine operate without any stored DTC's? |
|
System is now operational and ready to be tuned. |
Contact HP Tuners Support |
Table 7. Intake Air Temperature Sensor Circuit High Diagnostics Table

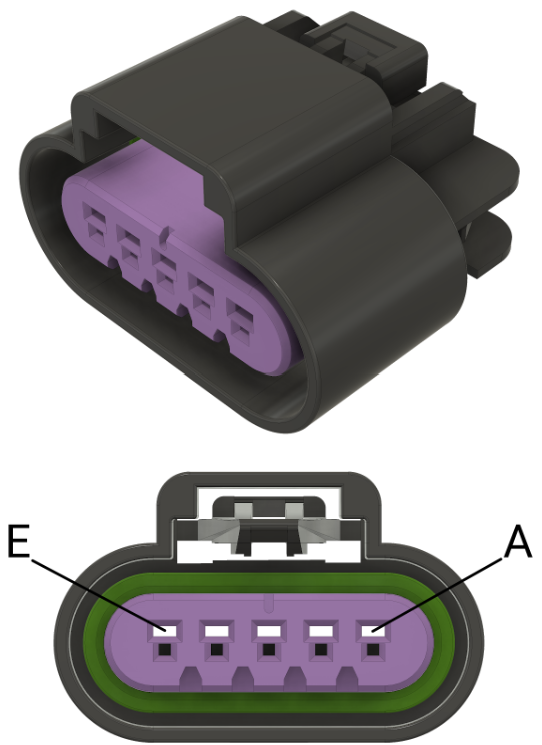

Figure 3. IAT Sensor Cavity Connector Location
