Adding a Gauge Group
A gauge group is subwindow that can contain multiple gauges. This allows the group to be moved and resized as a unit.
|
1.
|

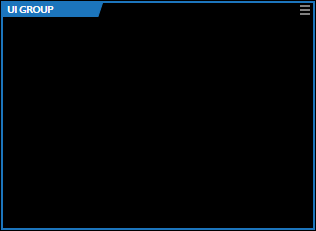

In the menu bar, select Layout > Add Control > Add Measurement > Add Gauge Group. An empty gauge group appears. |
|
2.
|
Add the individual gauges: |
|
a.
|
Right click inside the empty group. A popup menu that lists gauge types appears. |
|
b.
|
Select the type of gauge to add: Dial Gauge, Bar Gauge or Numeric Gauge. A window showing the properties for the new gauge appears. |
|
c.
|
Configure the parameters for the new gauge. These is identical to configuring the same gauge types as standalone gauges. |
