Adding a Time Graph

A time graph displays line charts of one or more signals over time. When scanning an ECU, the charts are drawn in real time. During playback of a log file, they display a time window surrounding the current time index of the playback.

To add a time graph,

1.

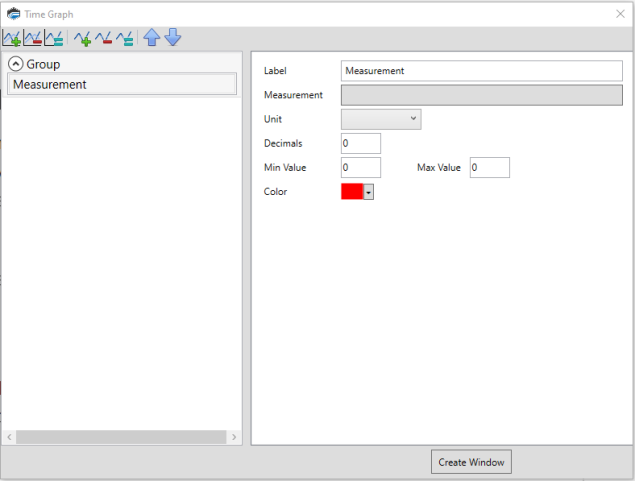

In the menu bar, select Layout > Add Control > Add Measurement > Add Time Graph. A window showing the properties for the new time graph appears.

2.

Use the controls in this window to add groups to the new graph and individual signals to each group (instructions below).

3.

When configuration is complete, Click Create Window.

Adding a Group

1.

Click .

2.

Add the desired signals to the group using the instructions below.

Adding a Signal (Measurement) to a Group

1.

In the column on the left, select the group that you want to add a signal to.

2.

Click .

3.

Click the Measurement link. A list of available measurement appears.

4.

Double-click on the measurement whose output you want to display.

5.

Complete signal setup by configuring the signal's parameters.

Editing an Existing Signal (Series)

To configure a signal that is already included in this layout:

1.

Select the name of the signal in the column on the left.

2.

Modify the signal parameters displayed on the right.

Toolbar

	Add a new (empty) chart group. To complete group setup, add the signals (series) that would be included in the group.
	Delete the chart group selected in the left column.
	Duplicate the group selected in the left column.
	Add a new signal (series) to the group selected in the column on the left. To complete signal setup, you must configure the signal's parameters.
	Delete the signal (measurement) selected in the left column.
	Duplicate the signal (measurement) selected in the column on the left.
	Move the signal selected in the left column upwards in the list.
	Move the signal selected in the left column downwards in the list.
