Using Measurement List Subwindow

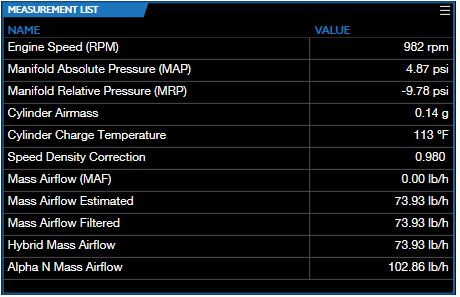

Measurement list subwindows contain simple lists of ECU measurements with two columns: Name and Value.

When actively recording a connected ECU or playing back a log file, VCM Live updates the Value column in real time to reflect the live or recorded measurements.

Changing the Display Properties for a Parameter

To modify the display properties for an individual parameter, right click on the parameter you wish to modify. A menu of configurable parameters appears:

￭

Polling Interval. Change the polling interval for the measurement.

￭

Units. Change the displayed units for the measurement.

￭

Decimals. Increase or decrease the number of decimal places displayed for the measurement.

Modifying the Subwindow

To make changes to the entire subwindow, such as adding or removing measurements, renaming the subwindow, or resizing it, see Subwindows
