Graph Panel Histograms
NOTE: This feature requires VCM Suite version 4.13 (or later).

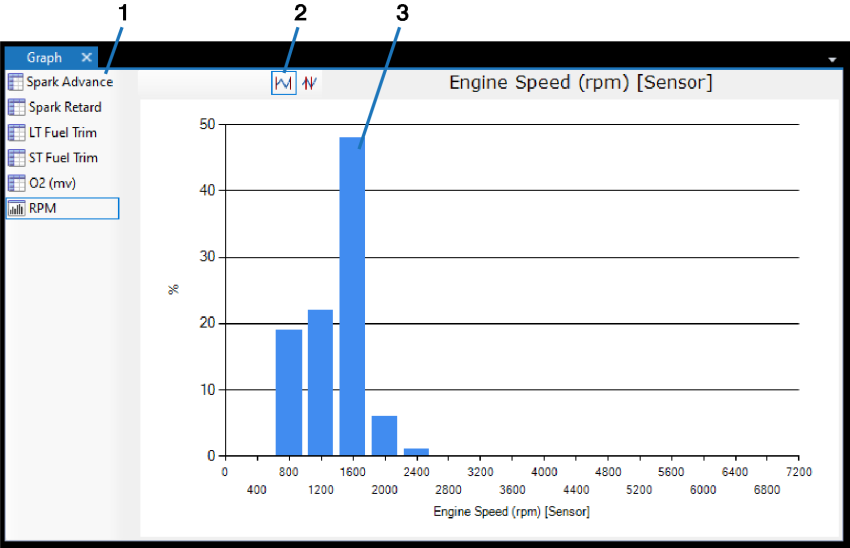

This type of graph plots the distribution of observed values for a single parameter.
Item |
Description |
---|---|
1. |
Graph Selection. A list of graphs that have been set up for this panel. Click the name of the graph you want to display. |
2. |
Time Range Selection. These icons above the graph select the time range for which data is graphed: Show data from entire length of the recording. Show only the data gathered during the time frame displayed in the Chart vs. Time panel. |
3. |
Percentage of Distribution. Each bar represents the percentage of time that the graphed parameter was observed with the indicated value. |
Copying Historgram Data to VCM Editor
If you have set up a histogram to mimic a corresponding table in VCM Editor, you can copy the collected performance data from this graph to the original table in VCM Editor. Follow these steps:
1. | In the left column, select the histogram whose data you wish to copy. |
2. | Right-click on the historgram and select Copy with Axis. |
3. | Open VCM Editor and navigate to the original table. |
4. | Open the table in Table Editor. |
5. | Right-click on the table and select Paste Special. |
