Graph Panel

The Graph panel plots all values of a specific parameter measured during the entire session. There are two types of graph that can be displayed here:

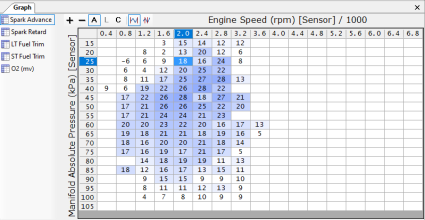

Tables: plot the observed values of a selected parameter as a function of two other selected parameters.

See Graph Panel Tables for more information.

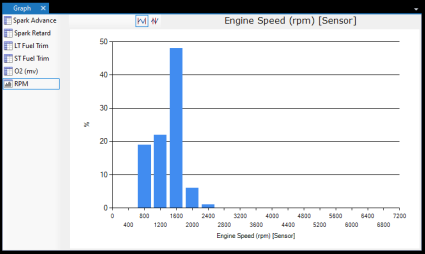

Histograms: (VCM Suite 4.13 and later) plot the distribution of observed values for a single parameter.

See Graph Panel Histograms.

Setting Up the Displayed Graphs

To add, remove, configure, or load and save graphs:

1. Right-click on the graph panel.
2. Select Graphs Layout.

See Graph Display Layout Editor for more information.

Changing the Graph Panel Theme

To change colors and fonts that apply to the all tables in the graph panel:

1. Right-click on the graph panel.
2. Select Display Properties.

See Graph Display Properties Editor for more information.

Hot Keys

Keypad 1 ‑ 0

View the table or histogram with the selected number (press 1 to view the first graph in the list).

Page Up / Page Down

Cycle through the table and histograms in the list.

CNTRL+C

(When viewing a table) copy the data in the selected cells to the clipboard.
