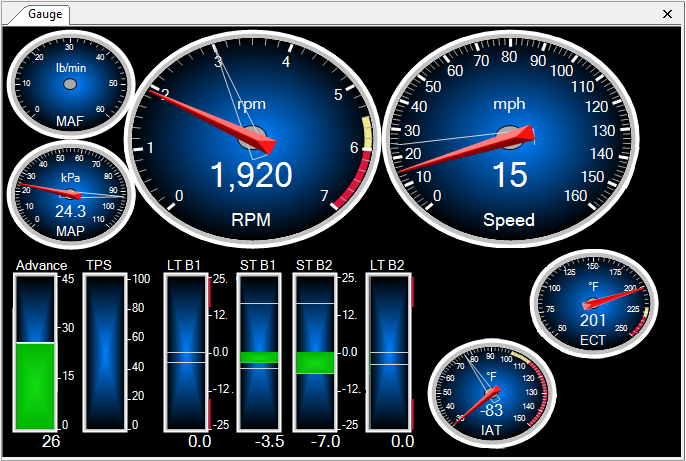

The Gauge panel can be configured to show a gauge based on any numerical stream of data provided by the vehicle's controllers and any external inputs you connect. Moreover, the layout and the theme of the panel is highly customizable.
Editing the Gauge Layout
To add, remove, configure, or load and save gauges:
| 1. | Right-click on the gauge display. |
| 2. | Select Gauges Layout. |
See Gauge Display Layout Editor for more information.
Changing the Gauge Panel Theme
To change colors, fonts, line weights and other elements of the gauge panel's theme:
| 1. | Right-click on the gauge display. |
| 2. | Select Display Properties. |
See Gauge Display Properties Editor for more information.
Resetting Ghost Gauges (Peaks)
Gauges can be configured to show "ghost" pointers that indicate the maximum and/or minimum values that the gauge has reached.
To reset all the ghost pointers in the panel:
| 1. | Right-click on the gauge display. |
| 2. | Select Reset Peaks. |
