Segment Swaps

Segment Swaps can only be performed with files whose Operating System IDs match exactly.

The Operating System ID can be found in the Tune Details window. (In the menu bar, select Edit > Calibration Details.

To perform the segment swap, follow the instructions below:

1.

In the menu bar, select File > Open.

2.

Select the tune file that you wish to move segments to.

3.

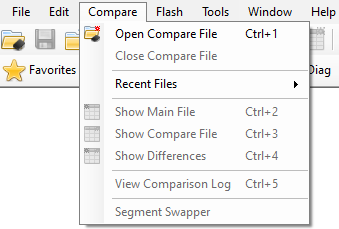

Once the first file has been opened, the Compare menu becomes available.

4.

In the menu bar, select Compare > Open Compare File.

5.

Select the file containing the segments you want to copy.

6.

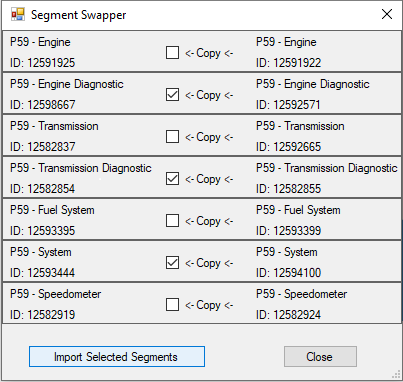

Select the Segment Swapper feature in the Compare menu.

7.

Select the segments you would like to move to the base file.

8.

Click Import Selected Segments.

9.

Click Close and save the file.
