Creating a New Template
Follow these steps to create a template:

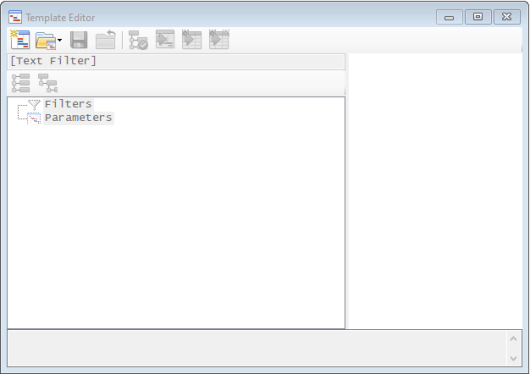

1. | In VCM Editor's toolbar, select Tools > Tune Template Editor. The Template Editor window appears. |
2. | In the Template Editor toolbar, click ![]() |
A new, empty template opens in the editor.
3. | Add parameters to the new template using one or more of the following toolbar icons: |
![]() |
Import parameters from an existing template. See Importing Another Template. |
![]() |
Select specific parameters from the currently loaded tune. See Adding Specific Parameters. |
![]() |
Import unsaved changes from the currently loaded tune. See Importing Unsaved Parameters. |
![]() |
When comparing two tune files, import the compare file version of parameters that differ from the main file. See Importing Compare File Differences. |
4. | The imported parameters should now be displayed on the right side of the window. If desired, edit the values of the imported parameters. |
5. | Click ![]() |
