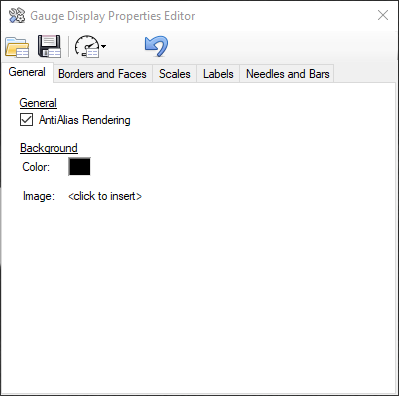

Gauge Display Properties Editor
The Display Properties Editor is used to configure the theme of the gauge display (colors, fonts, line widths, etc). To open this window:
1. | Right click on the gauge display. |
2. | Select Display Properties. |
NOTE: Changes take effect immediately (without saving your changes to file).
Toolbar
![]() |
Load Theme |
![]() |
Save Theme |
![]() |
Load Default Theme |
![]() |
Undo theme changes |
