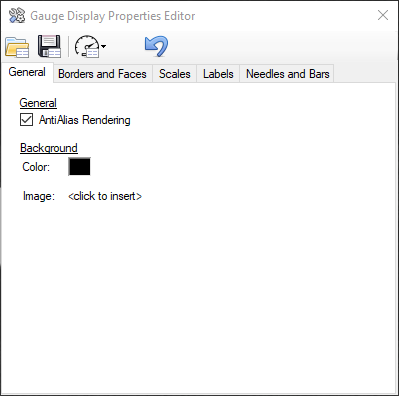

Gauge Display Properties Editor

The Display Properties Editor is used to configure the theme of the gauge display (colors, fonts, line widths, etc). To open this window:

1.

Right click on the gauge display.

2.

Select Display Properties.

NOTE: Changes take effect immediately (without saving your changes to file).

Toolbar

	Load Theme
	Save Theme
	Load Default Theme
	Undo theme changes
